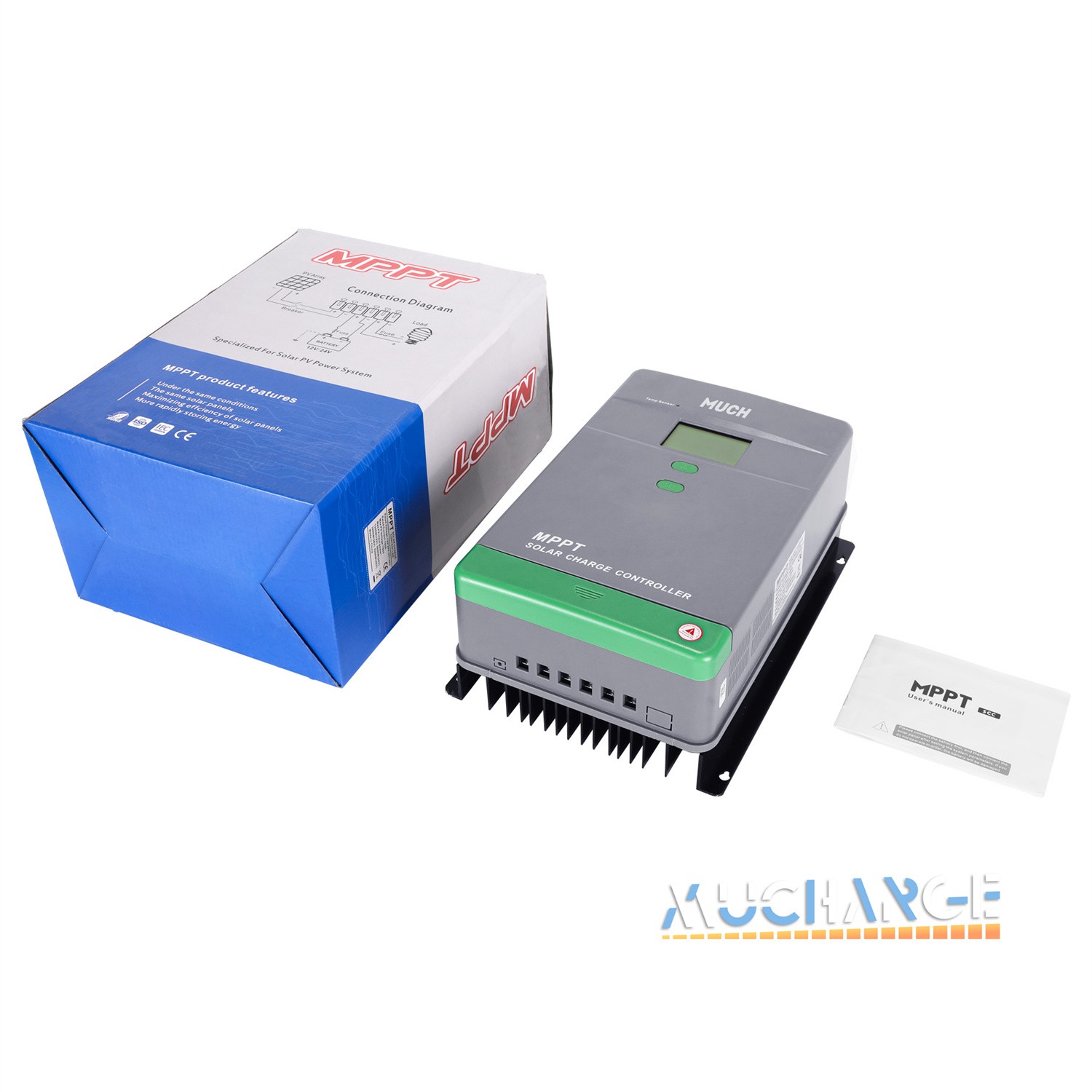

100A MPPT Solar Battery Panel Charge Controller 12V/24V/36V/48V Auto

100A MPPT Solar Battery Panel Charge Controller 12V/24V/36V/48V Auto Parallel 12 Product Features:
Full Charging Protections: Short Circuit/Overcurrent/Reverse Polarity,etc.protections; Very detail LCD screen and 2 buttons make this solar controller very simple to use. Fast service support and Simple and detail wiring instruction avaiable
99% MPPT Charging Efficiency:The tracking rate of maximum  power  is ≥99% and the maximum conversion rate is >98%,can be widely used for various applications,e.g. solar RV, household system and industrial field monitoring, etc.
Support Multiple Type Battery charging: Deep Cycle Sealed (AGM),User defalt,GEL,SLD,FLD,LiFePO4,Li(NiCoMn)O2
Mute and Excellent Heat Dissipation: Integrated heat sink, instead of cooling fan, provides a 0 dB surrounding for relax and ensures maximum charging efficiency and safety.
LCD Display: clear to see operating data and working condition, Real-time energy statistics function with Multiple load control modes,Mppt solar charge controller Display the daily power generation curve and current curve.
Synchronized Charging: Multiple MPPT charge controllers can synchronize to behave as one, simultaneously switching through different charge stages to ensure battery longevity and system wide energy optimization.
Tenperature Sensing: The solar charging controller is specially equipped with a temperature sensing system, which can automatically adjust the charging rhythm according to different temperatures, making your charging safer and more efficient.
Product Specification:* Advanced MPPT maximum power point tracking technology charge controller with tracking efficiency is no less than 99%.
* High quality components solar charger the maximum conversion efficiency can reach 98%.
* Super fast maximum power tracking speed controller while ensuring tracking efficiency.
* Accurate identification and tracking of the maximum power point of multi-wave peak.
* Reliable maximum input power of pv array to ensure the safety ofequipment.
* The LCD is designed to dynamically display the operation data andworking status of the equipment.
* Various load control modes: general mode, light control mode, dualtime mode, pure charger mode and timing mode.* Float charge:Maintenance-free lead-acid battery，GEL，lead-acid Flooded battery:13.8V
* Absorption charge: Maintenance-free lead-acid battery:14.4V,
* GEL:NO;lead-acid Flooded battery:14.6V Duration:2hours
* Equalization charge:Maintenance-free lead-acid battery:14.6V,
* GEL:NO;lead-acid Flooded battery:14.8V Duration:2hours
* Load disconnection(LVD):Maintenance-free lead-acid battery，GEL，lead-acid Flooded battery:10.8V
* Load reconnection(LVR): Maintenance-free lead-acid battery，GEL，lead-acid Flooded battery:12.6V
* Battery Over Voltage Protection:Lead-acid battery 16V
* Light control voltage:5V/10V/15V/20V * Display mode：LCD
* Static loss：<50MA
* Temperature Compensation:-4mV/℃ for 12V system
* Light control voltage: 5V
* Temperature Compensation Coefficient: -4mV/°C/2V(25°C)
* Charge loop voltage drop: ≤0.2v
* LCD Temperature: -20°C~+70°c
* Operating Temperature: -20°C~+55°C (To run at full rated current continuously)
* Working humidity: ≤90% No condensation
* Grounded type:Positive grounded
* Colour：Grey
* Material：PC+Aluminum Alloy
* Waterproof rating: IP30* Aperture for installation:ф5mm MPPT 100A 12V/24V/36V/48V
Charging control mode:MPPT
System voltage: 12V/24V/36V/48V AUTO
Fit for solar Panel:1300W(12V);2600W(24V);3900W(36V);5200W(48V);
Max input Voltage:150V PV;
MPPT best working voltage range:DC18V-DC80V(12V);DC30V-DC100V(24V);DC65V-DC150V(48V)
Dimension：290*210*120/11.4”*8.27”*4.7”
Products Include:
1x Solar Controller Why Choose Us?
